Pneumatic Piston Vibrators With Vibration Adjustable FP-M Type

Name: Pneumatic Piston Vibrators With Vibration Adjustable FPM Type
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Buy cheap Pneumatic Piston Vibrators With Vibration Adjustable FP-M Type product

Brand Name : PRIUS,XINYI or OEM

Model Number : FP-M

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 10000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Name : Piston Vibrator

Material : Aluminium+bronze

Length : 81~109mm

Port Size : 1/8" 1/4"

Frequency : 10~60times/min

Max.temp : 150°C

Contact Now

FP-M Type Pneumatic Hamm Piston Vibrators with vibration adjustable

Feature

Big power with lower noise

Standard frequency is from 10 to 60 times per minute

Excutation force is from 484 N to 13800 N

The frequency and vibration amplitude can be adjusted via regulating the working pressure

The normal maximum working pressure is 150 degrees centigrade

(We can also make special type,such as 200 degrees centigrade)

The pneumatic hammer can be used for severe environment

Applications

Hopper feed,Casting industry,Pipelining,Compaction,Screening,Conveyer,etc

Structure

Aluminum shell with special high grade grease,long lifetime,is suitable for different application situation

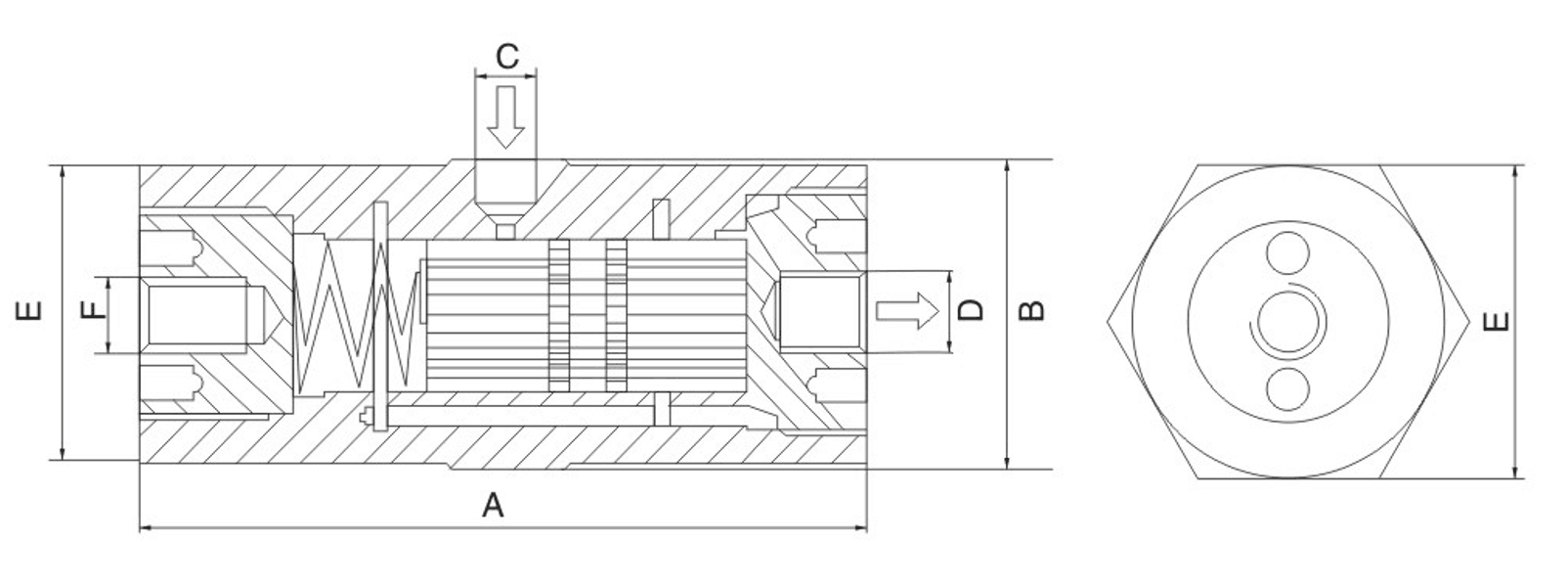

Dimensions

Aluminum shell and base

Lead bronze piston

Steel spring for starting equipment

Noise reducing and exhausting system

Female thread hole for installing

Pneumatic Piston Vibrators With Vibration Adjustable FP-M Type

Type	Frequency*1000		Vibration power(N)		Air consumption(/min)		A	C	D	E	F
	Frequency*1000		Vibration power(N)		Air consumption(/min)		Length	Inlet	Thread	SW	Outelt
	2bars	6bars	2bars	6bars	2bars	6bars	mm	Inlet	Thread	mm	Outelt
FP-12-M	5	6.7	34	74	0.5	19	81	1/8"	M-8	34	1/8"
FP-18-M	4	5.9	68	188	4	52	94	1/8"	M-10	42	1/8"
FP-25-M	3	4.2	142	504	23	87	99	1/8"	M-12	50	1/4"
FP-35-M	3	4.6	248	1080	24	141	109	1/4"	M-12	65	1/4"
