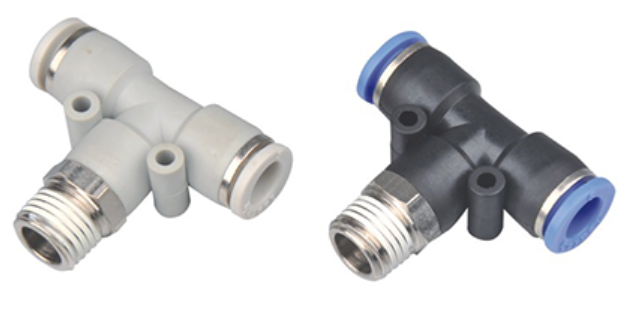

PB Branch Tee two Touches connector Brass Nickel Plated Tube Fittings
Quick Detail:
* One touch quick push-in fitting
* Body material brass nickle plated
* Housing material PBT,white colour and black colour selectable
* Lock claw material stainless steel,tight and stable
* Round and oval sleeve for option,colour in black and blue selectable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* Tube size available metric 4,6,8,10,12,16 inch 5/32,3/16,1/4,5/16,3/8,1/2
* Ttraight,tee,branch tee,run tee,elbow,universal elbow(Banjo),plug,splicer,reduction,flow regulator,swivel type,triple type,thread extended type,bulkhead type,check type,stop type
Product Features
One-Touch tube fittings are used in pnematics piping.
The tube fittings come in wide varirty of models to meet all your needs in pneumatics piping.
Even after installation,in direction of the tube can be changed freely.
Nickel-plated metal body ensures Anti-Corrosion and Anti-Contarmination.
All R and NPT threads are Pre-Costed sealant.
All cyilndrical threads are standard with O-Ring seals
| Fluid Type | Air, Vacuum |
| Operating Pressure | 0~10.2kgf/cm2(0~1.0MPa) |
| Negative Pressure | -750mmHg(10Torr) |
| Max. Pressure | 15.3kgf/cm2(1.5MPa) |
| Operating Temperature Range | 0~60℃ |
| Tube Material | Nylon and Polyurethane |

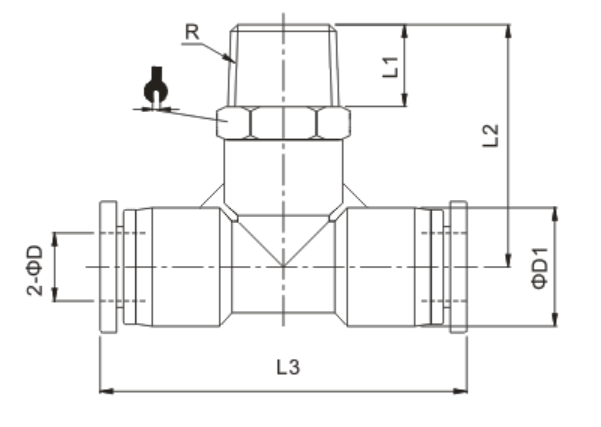

Tube Outer DIA

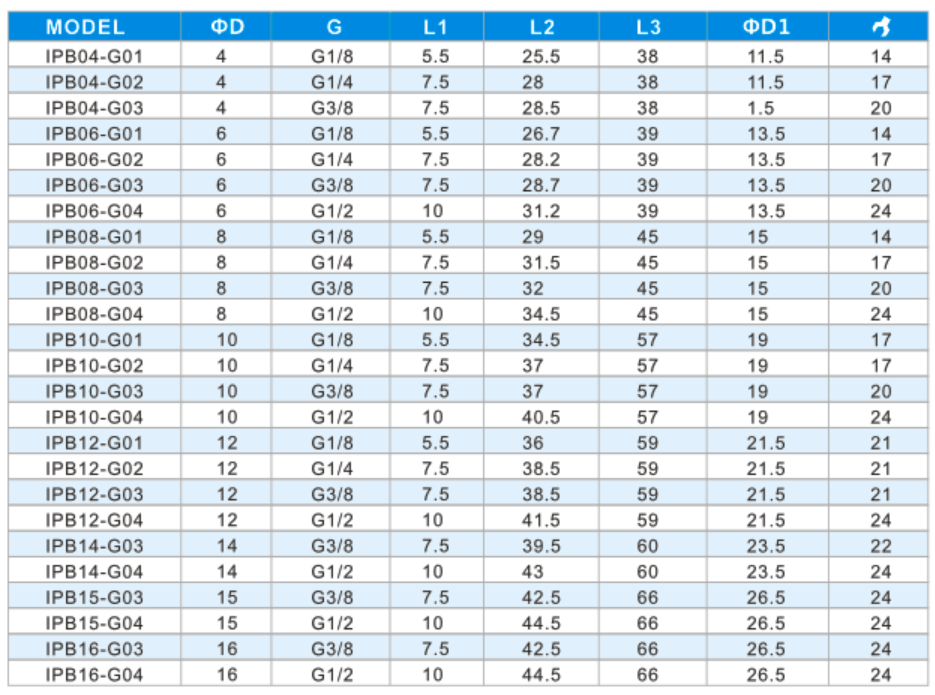

| | Metric Size | Inch Size |
| Code | 4 | 6 | 8 | 10 | 12 | 16 | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
| Dia. | Φ4 | Φ6 | Φ8 | Φ10 | Φ12 | Φ16 | Φ5/32 | Φ3/16 | Φ1/4 | Φ5/16 | Φ3/8 | Φ1/2 |
Thread Type & Size
| Code | M5 | M6 | M8 | M10 | M12 | M12A | M14 | M16 | M20 |
| Dia. | 4mm | 6mm | 8mm | 10mm | 12mm | 14mm | 16mm | 1/8inch | 5/32inch |
| | 55º Taper Pipe Thread (PT) | G - Thread |
| Code | 1 | 2 | 3 | 4 | 6 | G01 | G02 | G03 | G04 | G06 |
| Dia. | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| | UNF | NPT1/8 |
| Code | U10 | N01 | N02 | N03 | N04 | N06 |
| Size | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
