FESTO Type DSNU Mini Air Cylinder Bore 8 - 40mm With Adjustable Buffer

Name: FESTO Type DSNU Mini Air Cylinder Bore 8 40mm With Adjustable Buffer
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Buy cheap FESTO Type DSNU Mini Air Cylinder Bore 8 - 40mm With Adjustable Buffer product

Brand Name : PRIUS,XINYI or OEM

Model Number : DSNU

Place of Origin : Ningbo,China

MOQ : 5pcs

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

name : stainless steel mini cylinder

Working Medium : Air

Working Pressure : 1-9.0Kgf/cm²

Pressure : 13.50Kgf/cm²

Temperature Range : 0-70℃

Speed Range : 50~800mm/s

Buffer Type : Gasket Buffer/Adjustable Buffer

Port Size : M5X0.8/G1/8"

Fix Type : Normal/LB/FA/FB/SDB

Action Type : Single acting/Double acting

Contact Now

FESTO type ISO6432 DSNU Pneumatic Air Mini Cylinder with Bore from 8-40mm

ISO6432 standard stainless steel mini DSNU double acting Pneumatic air cylinder Bore size 8mm-63mm e.g. DSNU40-50-PPV-A with magnet and adjustable air buffer Festo crossover

Quick Detail:

* ISO 6432 standard mini pneumatic air cylinder

* With magnet,air buffer adjustable or rubber cushion for choice

* Stainless steel barrel,Aluminum tube can be optional

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With guide plate type available

* With self-lubricating bearing,lubrication free

* Bore size 8mm, 10mm,12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm

* DSNU-KP air lock type available

* Cylinder kits and accessories available

Specifiction

Bore (mm)	12	16	20	25	32	40
Motion Pattern		Double Acting or Single Acting

Working Medium			Air

Fixed Type	Normal type/Type LB/Type FA/Type FB/Type SDB

Working Pressure Range			1～9.0 Kgf/cm²
Ensured Pressure Resistance			13.5 Kgf/cm²
Operating Temperature Range			0～70℃

Operating Speed Range			50～800mm/s

Buffer Type	Gasket Buffer		Adjustable Buffer

Port Size	M5x0.8			G1/8″

FESTO Type DSNU Mini Air Cylinder Bore 8 - 40mm With Adjustable Buffer

Stroke


Bore(mm)								Standard Stroke									Max.Stroke	Permissible Stroke

12	25	50	75	80	100	125	150	160	175	200							300	500

16	25	50	75	80	100	125	150	160	175	200							300	500

20	25	50	75	80	100	125	150	160	175	200	250	300					500	650

25	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650

32	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650

40	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650

FESTO Type DSNU Mini Air Cylinder Bore 8 - 40mm With Adjustable Buffer

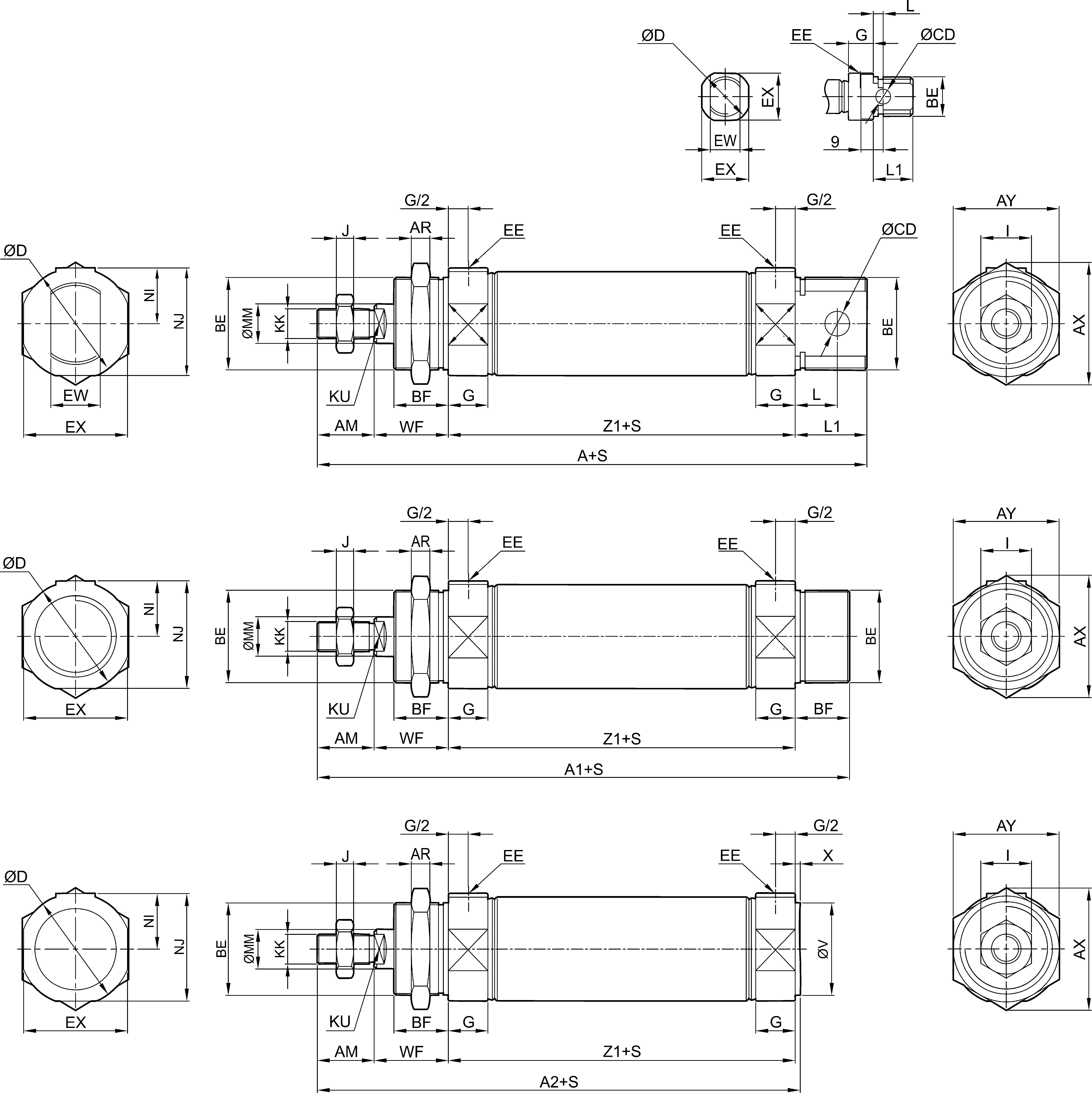

Dimension Sheet

Bore	A	A1	A2	AM	BE	BF	CD	D	EE	EX	EW	G	KK
12	103	103	87	16	M16 x1.5	16	6	21	M5	19	12	10	M6 x1.0
16	112	112	96	16	M16 x1.5	16	6	21	M5	19	12	10	M6 x1.0
20	125	121	105	20	M22 x1.5	18	8	30	G1/8	27	16	15	M8 x1.25
25	136	134	116	22	M22 x1.5	20	8	30	G1/8	27	16	16	M10 x1.25
32	150	143	125	23	M27 x2.0	20	10	38	G1/8	35	20	16	M10 x1.25
40	150	143	125	23	M33 x2.0	20	10	45	G1/8	42	20	16	M14 x1.5

Bore	KU	V	L	L1	MM	NI	NJ	WF	Z1	X	J	AR	I	AX	AY
12	5	-	4	16	6	-	-	22	49	-	5	6	10	24	27.5
16	5	-	9	16	6	-	-	22	58	-	5	6	10	24	27.5
20	7	22	12	22	8	15	28.5	24	59	2	6	7	12	33	29
25	9	22	12	22	10	15	28.5	28	64	2	6	7	17	33	29
32	10	27	15	27	12	19	36.5	28	72	2	6	12	17	41	36
40	14	33	15	27	16	22.5	43.5	28	72	2	8	11.5	22	51	45
