Double Acting Pneumatic Cylinder , Fix Type MA Pneumatic Piston Cylinder

Name: Double Acting Pneumatic Cylinder Fix Type MA Pneumatic Piston Cylinder
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Buy cheap Double Acting Pneumatic Cylinder , Fix Type MA Pneumatic Piston Cylinder product

Brand Name : PRIUS,XINYI or OEM

Model Number : MA

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

name : stainless steel pneumatic cylinder

Working Medium : Air

Material : ss304

Back cover type : n/m,cm,u

Temperature Range : -5-70℃

Speed Range : 50~800mm/s

Port Size : M5X0.8/G1/8"

Action Type : Single acting/Double acting

Contact Now

Double Acting Pneumatic Cylinder , Fix Type MA Pneumatic Piston Cylinder

MA standard stainless steel mini MA double acting Pneumatic air cylinder Bore size 8mm-63mm e.g. DSNU40-50-PPV-A with magnet and adjustable air buffer Festo crossover

Quick Detail:

* ISO 6432 standard mini pneumatic air cylinder

* With magnet,air buffer adjustable or rubber cushion for choice

* Stainless steel barrel,Aluminum tube can be optional

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With guide plate type available

* With self-lubricating bearing,lubrication free

* Bore size 8mm, 10mm,12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm

* Cylinder kits and accessories available

Double Acting Pneumatic Cylinder , Fix Type MA Pneumatic Piston Cylinder

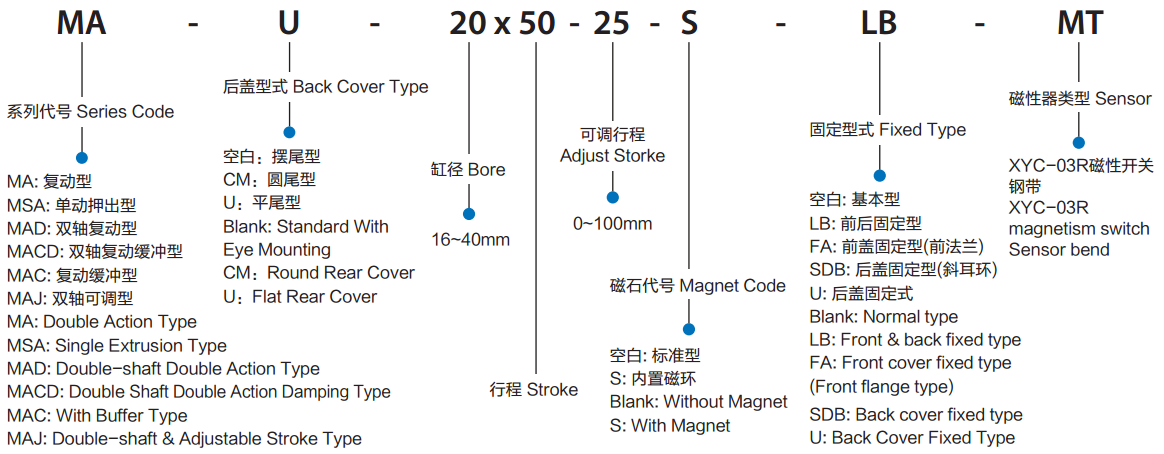

Ordering Code

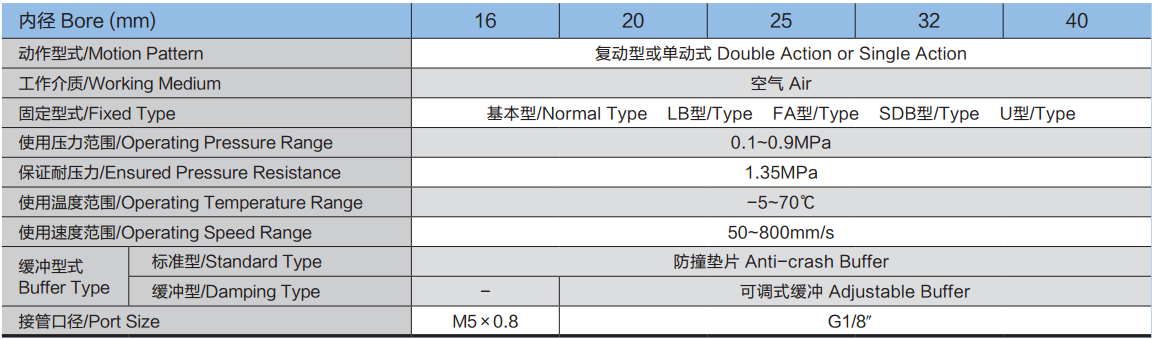

Specifiction

Double Acting Pneumatic Cylinder , Fix Type MA Pneumatic Piston Cylinder

Internal Structure

Double Acting Pneumatic Cylinder , Fix Type MA Pneumatic Piston Cylinder

Stroke

Bore(mm)	Standard Stroke			Max.Stroke	Permissible Stroke

16	25 50 75 80 100 125 160 175 200			300	500

20	25 50 75 80 100 125 160 175 200	250 300		500	650

25	25 50 75 80 100 125 160 175 200	250 300	350 400 450 500	500	650

32	25 50 75 80 100 125 160 175 200	250 300	350 400 450 500	500	650

40	25 50 75 80 100 125 160 175 200	250 300	350 400 450 500	500	650

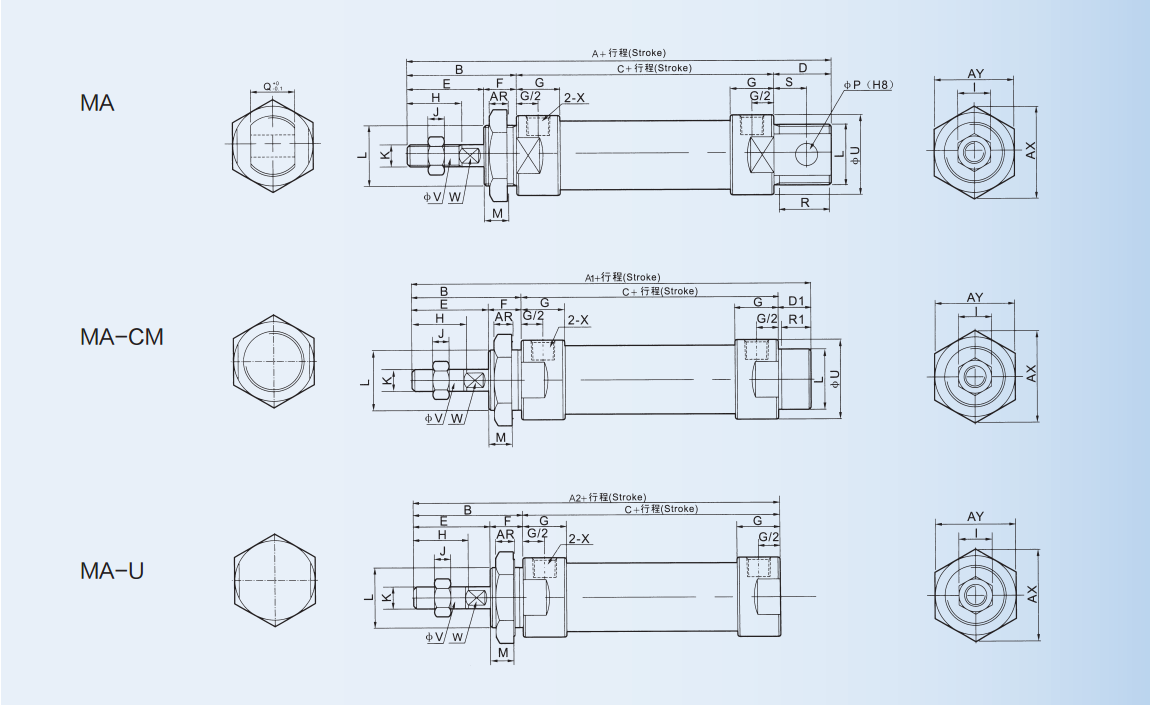

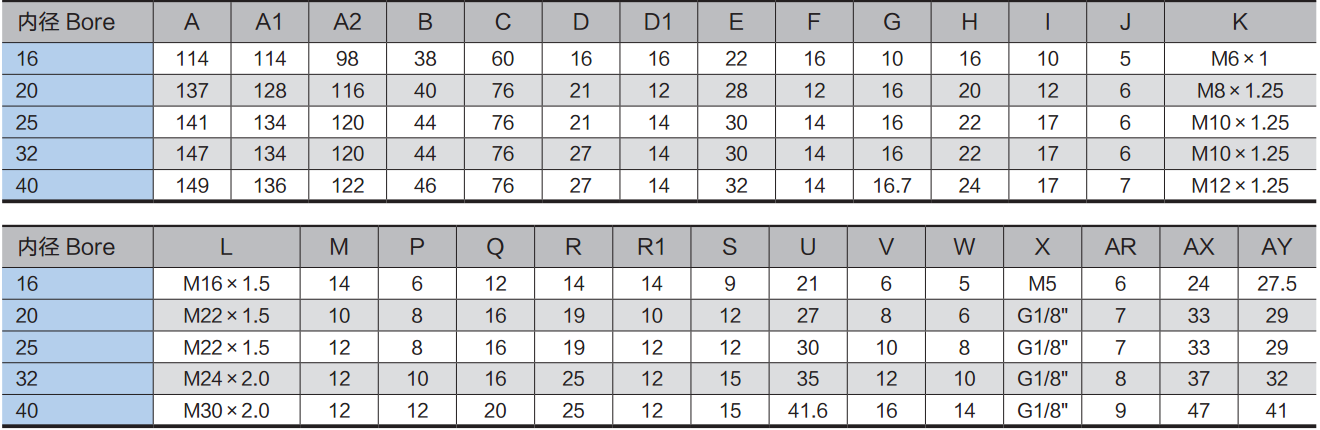

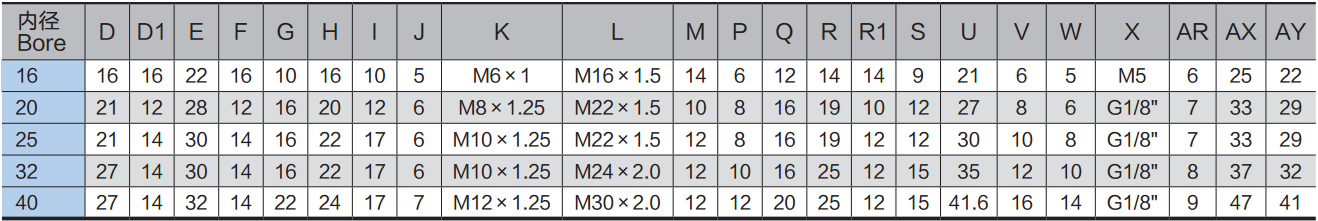

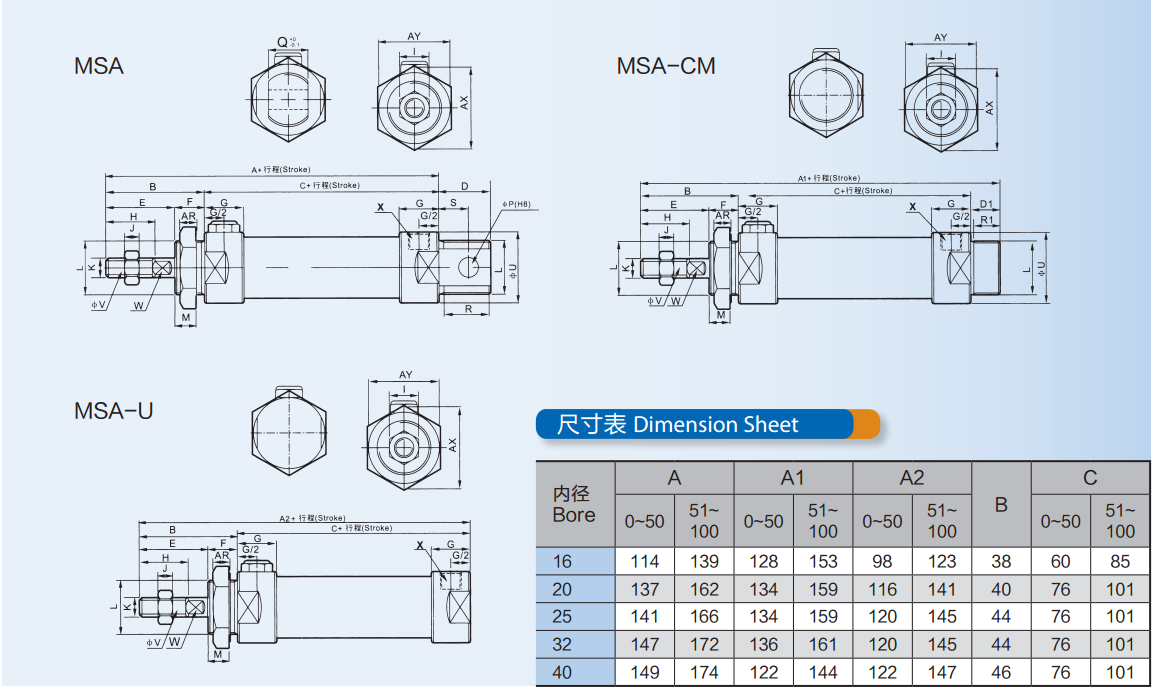

Overall Dimension

Double Acting Pneumatic Cylinder , Fix Type MA Pneumatic Piston Cylinder
