Back Cover Fixed Type Mini Air Cylinder Accessories M - SDB Angle Rear Trunnion
Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis
Quick Detail:
* Pneumatic air cylinder accessories
* Various asccessories for mounting and functional application
* Covering full range of air cylinder size from Dia.8mm~dia.400mm
* Aluminum material and casting steel material available
* Easy and fast for operatating to mount onto cylinders
* With good shape by the quality surface treatment
* Special air cylinder accessories can be customize for specific application
Applications:
Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.
Specification

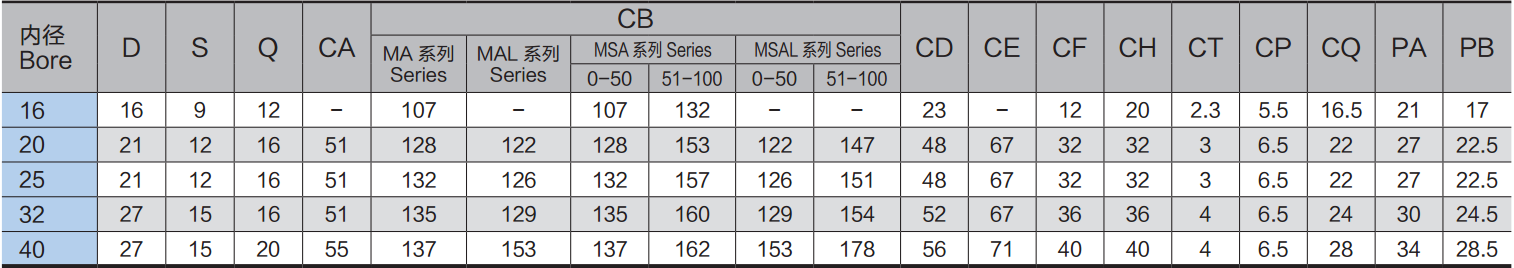

| | | | | | | | CB | | | | | | | | | | | | | |
| D | S | Q | CA | MA Series | MAL Series | MSA Series | MSAL Series | CD | CE | CF | CH | CT | CP | CQ | PA | PB | |
| Bore | |
| | | | | | | | 0-50 | 51-100 | 0-50 | 51-100 | | | | | | | | | | |
| 16 | 16 | 9 | 12 | - | 107 | - | 107 | | 132 | - | - | 23 | - | 12 | 20 | 2.3 | 5.5 | 16.5 | 21 | 17 | |
| | | | | | | | | | | | | | | | | | | | | | |
| 20 | 21 | 12 | 16 | 51 | 128 | 122 | 128 | | 153 | 122 | 147 | 48 | 67 | 32 | 32 | 3 | 6.5 | 22 | 27 | 22.5 | |
| 25 | 21 | 12 | 16 | 51 | 132 | 126 | 132 | | 157 | 126 | 151 | 48 | 67 | 32 | 32 | 3 | 6.5 | 22 | 27 | 22.5 | |
| | | | | | | | | | | | | | | | | | | | | | |
| 32 | 27 | 15 | 16 | 51 | 135 | 129 | 135 | | 160 | 129 | 154 | 52 | 67 | 36 | 36 | 4 | 6.5 | 24 | 30 | 24.5 | |
| | | | | | | | | | | | | | | | | | | | | | |
| 40 | 27 | 15 | 20 | 55 | 137 | 153 | 137 | | 162 | 153 | 178 | 56 | 71 | 40 | 40 | 4 | 6.5 | 28 | 34 | 28.5 | |
Product Tags:
|
|
Fixed Type Mini Air Cylinder Accessories Foot Mounting M - SDB Angle Rear Trunnion Images
|
