2 Units - 20 Units Pneumatic Solenoid Valve 3 / 2 Way Without Manifold

Product Categories
Prius pneumatic Company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2 Units - 20 Units Pneumatic Solenoid Valve 3 / 2 Way Without Manifold

Brand Name : PRIUS,XINYI or OEM

Model Number : 3V1-4M

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

name : pneumatic air valve

Working Medium : 40 Micron Filtered Air

Working Pressure : 0~0.8MPa

Max. Pressure : 1.2MPa

Air Temperature Range : 5-60℃

Acting Type : Direct Drive Type

Buffer Type : Gasket Buffer/Adjustable Buffer

Port Size : M5/G1/8"/NPT

Power Consumption : AV:5.5VA DC:4.8W

Insulation : F Class

Ambient Temperature : -10~60℃

Outlet Diameter : 1.0mm

Contact Now

Unit Solenoid Valves 3/2 way without Manifold from 2 units to 20 units







Airtac Type18mm,22mm,27mm,34mm, 5/2 single acting solenoid valve 1/8"~1/2",aluminum body material

2 Position 3 Way Pneumatic Control and Solenoid Operated Directional Control Valve,pilot Operated

Quick Detail:



* Airtac Type Solenoid valve 4V Series
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively



Specification

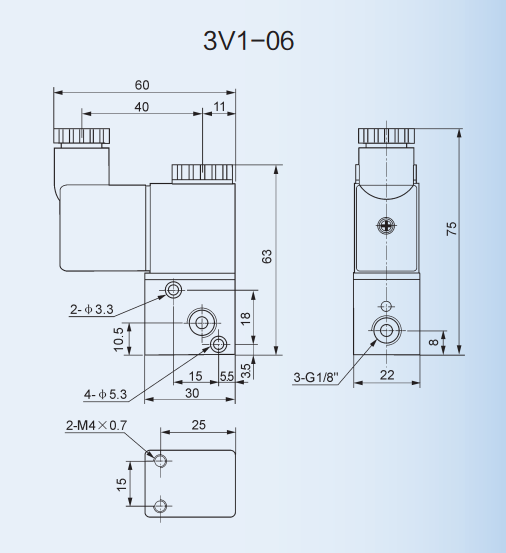

Model   3V1-M5   3V1-06

Working Medium 40 Micron Filtered Air


Motion Pattern   Direct Drive Type

Port Size   M5   1/8″

Ambient Temperature   -10～+60℃

Gas Temperature   5～60℃

Air Outlet Diameter   1.0mm

Lubrication   Not Necessary

Working-pressure   0～0.8MPa

Max. Pressure Resistance   1.2MPa

Power Consumption   AC: 5.5VA DC: 4.8W

Protect Class   IP65

Power Connection Form       Lead Wire or Connector Type

Material of Body   Aluminum Alloy

Highest Action Frequency   10 Cycle/Sec

Insulation   F Class

Voltage Range ±10%

Shortest Excitation Time   0.05Second



2 Units - 20 Units Pneumatic Solenoid Valve 3 / 2 Way Without Manifold





2 Units - 20 Units Pneumatic Solenoid Valve 3 / 2 Way Without Manifold



2 Units - 20 Units Pneumatic Solenoid Valve 3 / 2 Way Without Manifold2 Units - 20 Units Pneumatic Solenoid Valve 3 / 2 Way Without Manifold
