Bore Size 32 ~ 320mm SC Type Double Acting Pneumatic Cylinder With Adjustable Buffer

Brand Name : PRIUS,XINYI or OEM

Model Number : XCA125*400

Place of Origin : Ningbo,China

MOQ : 3pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 10000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

name : double acting cylinder

Material : Aluminum

Working Pressure : 1-9.0Kgf/cm²

Temperature Range : 0-70℃

Speed Range : 50~800mm/s

Buffer Type : Gasket Buffer/Adjustable Buffer

Port Size : G1/2"

Action Type : Double acting

Contact Now



Bore Size from 32~320mm SC type air cylinder with flange and solenoid valve


Quick Detail:

* With magnet,air buffer adjustable or rubber cushion for choice
* Aluminum barrel can be optional
* Piston rod #45(ASTM-1045) steel chrome-plated
* Stainless steel piston rod is available
* With guide plate type available
* With self-lubricating bearing,lubrication free
* Bore size from 32mm up to 320mm
* Cylinder kits and accessories available
* MPT air hydraulic booster cylinder​
* Air cylinder pressure endurance 1.5MPa,Oil cylinder pressure up to 30MPa
* Motion in double action,boosting speed high efficiency




Specifiction



Bore (mm)3240506380100125160200250320
Motion PatternDouble Action
Working MediumAir
Fixed TypeNormal type/ FA Type/ FB Type/ CA Type/ CB Type/ LB Type/ TC Type/ TC-M Type
Working Pressure Range0.1~0.9MPa
Ensured Pressure Resistance1.35MPa
Operating Temperature Range0~70℃
Operating Speed Range50~800mm/s
Buffer TypeAdjustable Buffer
Buffer Stroke20mm26mm45mm52mm66mm
Port SizeG1/8″G1/4″G3/8"G1/2"G3/4”G1"






Stroke




Bore (mm)Standard StrokeMax.StrokePermissible Stroke
3225 50 75 80 100 125 160 175 200 250 300 350 400 450 50010002000

4025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 80012002000

5025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100012002000

6325 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000

8025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000

10025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000

12525 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000

16025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000

20025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000

25025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000

32025 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 100015002000



Overall Dimension




Bore Size 32 ~ 320mm SC Type Double Acting Pneumatic Cylinder With Adjustable Buffer

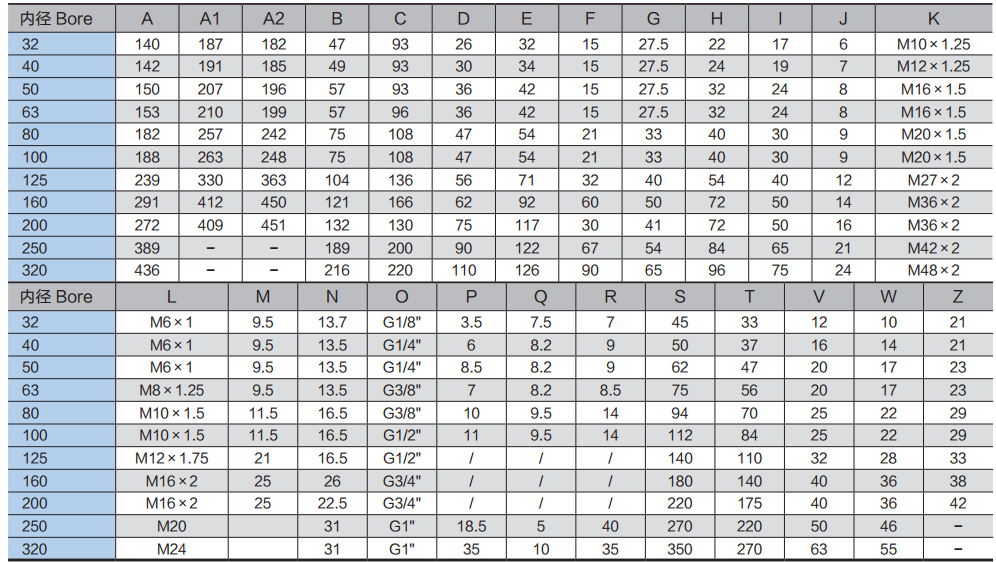

Dimension SheetBore Size 32 ~ 320mm SC Type Double Acting Pneumatic Cylinder With Adjustable Buffer
