Grey SDB Air Cylinder Accessories Fixed Type / Angle Type With Back Cover

Brand Name : PRIUS,XINYI or OEM

Model Number : SDB

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Product Name : SDB

name : Air Cylinder Accessories

Working Pressure : 1-9.0Kgf/cm²

Pressure : 13.50Kgf/cm²

Temperature Range : 0-70℃

Buffer Type : Gasket Buffer/Adjustable Buffer

Port Size : M5X0.8/G1/8"

Fix Type : Normal/LB/FA/FB/SDB

Contact Now

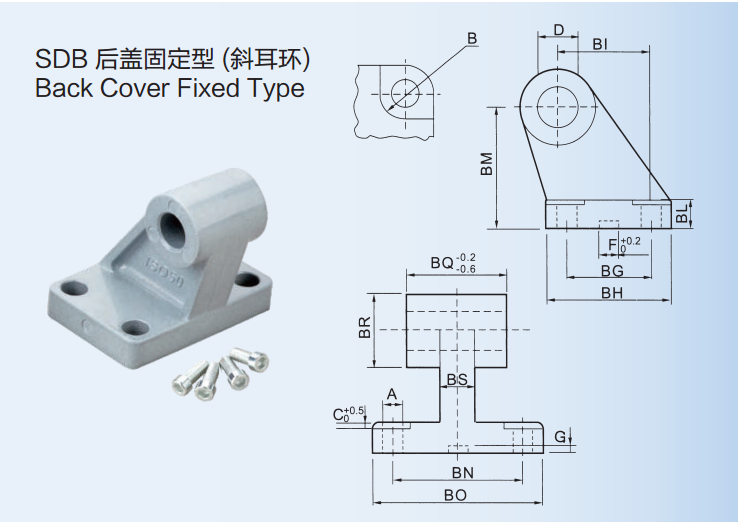

SDB Back Cover Fixed Type Angle Type ISO Cylinder Accessories

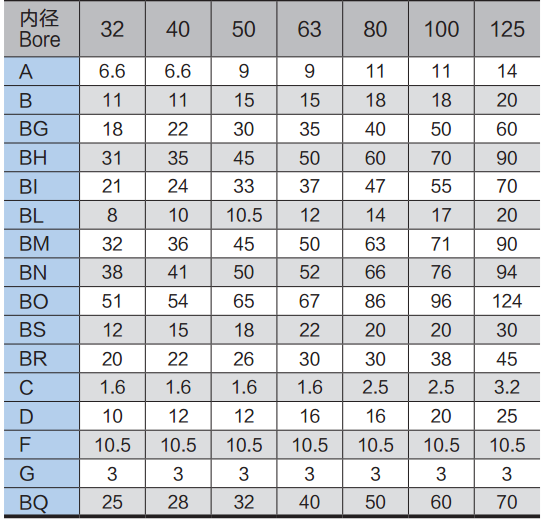

Specification



  32   40   50 63 80     100   125
Bore

A 6.6   6.6   9 9 11       11   14

B 11   11   15 15 18       18   20

BG 18   22   30 35 40       50   60

BH 31   35   45 50 60       70   90

BI 21   24   33 37 47       55   70

BL 8   10   10.5 12 14       17   20

BM 32   36   45 50 63       71   90

BN 38   41   50 52 66       76   94

BO 51   54   65 67 86       96   124

BS 12   15   18 22 20       20   30

BR 20   22   26 30 30       38   45

C 1.6   1.6   1.6 1.6 2.5     2.5   3.2

D 10   12   12 16 16       20   25

F 10.5   10.5   10.5 10.5 10.5   10.5   10.5

G 3   3     3 3 3       3   3

BQ 25   28   32 40 50       60   70





Grey SDB Air Cylinder Accessories Fixed Type / Angle Type With Back CoverGrey SDB Air Cylinder Accessories Fixed Type / Angle Type With Back Cover
