Name: Plastic XYC 21 Series Magnetic Micro Switch Round Barrel Type SI Cylinder
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Brand Name : PRIUS,XINYI or OEM

Model Number : XYC-21

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Material : Plastic

Working Medium : magnetic sensor switch

Working Pressure : 1-9.0Kgf/cm²

Pressure : 13.50Kgf/cm²

Temperature Range : 0-70℃

Speed Range : 50~800mm/s

Buffer Type : Gasket Buffer/Adjustable Buffer

Port Size : M5X0.8/G1/8"

Fix Type : Normal/LB/FA/FB/SDB

Action Type : Single acting/Double acting

Contact Now

XYC - 21 Series Magnetism Switch for round barrel type and SI cylinder

Specifica

Model	XYC-21R	XYC-21N			XYC-21P

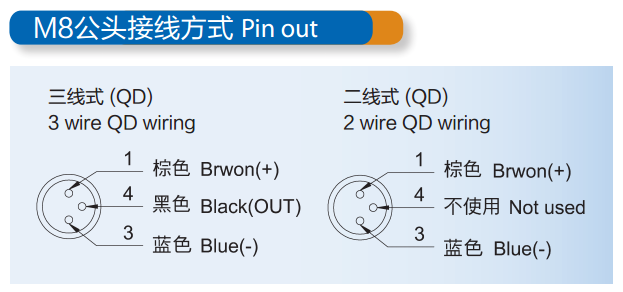

Connect Diagram
Characteristics

Wiring Method	2-Wire Type	3-Wire Type

Switching Logic	SPST Nomally Open	Solid State Output, Normally Open

Sensor Type	Reed Switch	NPN Current Sinking		PNP Current Sourcing

Operating Voltage	5~240V DC/AC		5~30V DC

Max. Switching Current	100mA max.		200mA max.

Contact Rating	10W max.		6W max.

Current Consumption	-	15mA @ 24V DC max.

Voltage Drop	3.5V max.		1.5V max.

Leakage Current	-	0.01 mA max.

Indicator	Red LED	Red LED		Green LED

Cable	Ф4.0,2C,PVC	Ф4.0,3C,PVC

Max. Operating Frequency	200HZ		1000HZ

Temperature Range		-10~70℃

Shock	30G		50G

Vibration		9G

Enclosure Classification		IEC 529 IP67 (NEMA 6)

Protection Circuit	-	With Protection

Plastic XYC - 21 Series Magnetic Micro Switch Round Barrel Type SI Cylinder

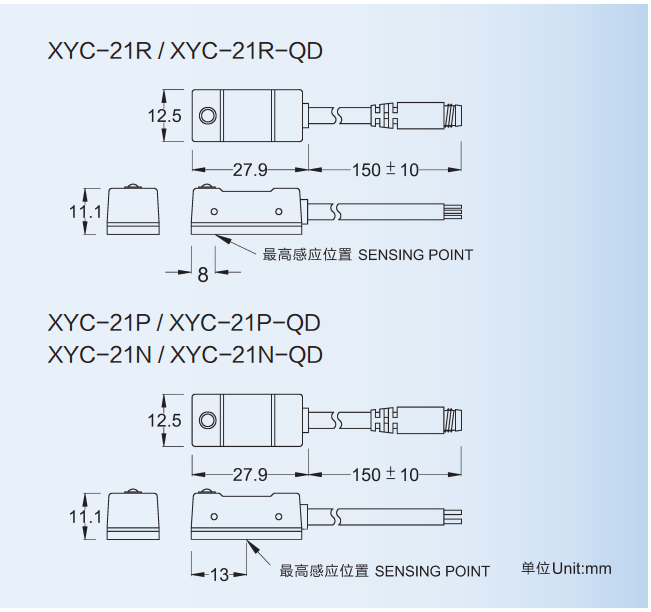

Overall Dimension

Plastic XYC - 21 Series Magnetic Micro Switch Round Barrel Type SI Cylinder
