Iron Standard Air Cylinder Accessories black Colour TC Central Trunnion

Name: Iron Standard Air Cylinder Accessories black Colour TC Central Trunnion
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Brand Name : PRIUS,XINYI or OEM

Model Number : TC

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Product Name : TC

Colour : Black

Material : IRON

Temperature Range : 0-70℃

Speed Range : 50~800mm/s

Port Size : M5X0.8/G1/8"

Fix Type : Normal/LB/FA/FB/SDB

Action Type : Single acting/Double acting

Contact Now

TC Central Trunnion Standard Cylinder Accessories black colour

Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis

Quick Detail:

* Pneumatic air cylinder accessories

* Various asccessories for mounting and functional application

* Covering full range of air cylinder size from Dia.8mm~dia.400mm

* Aluminum material and casting steel material available

* Easy and fast for operatating to mount onto cylinders

* With good shape by the quality surface treatment

* Special air cylinder accessories can be customize for specific application

Applications:

Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.

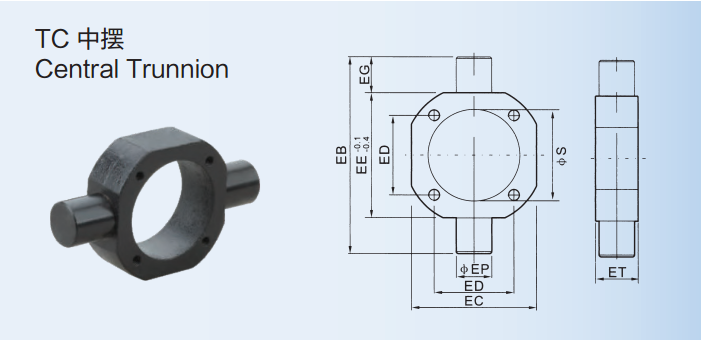

Specification

	40	50	63	80	100	125	160	200
Bore	40	50	63	80	100	125	160	200
Bore
EB	113	126	138	164	182	210	264	336
EB	113	126	138	164	182	210	264	336

EC	63	76	88	114	132	160	200	240

ED	37	47	56	70	84	110	140	175

EE	63	76	88	114	132	160	200	240

EG	25	25	25	25	25	25	32	48

EP	25	25	25	25	25	25	32	37

ET	30	30	30	30	40	30	38	44

S	45.5	55.5	68.5	87.5	107.5	134.5	172.5	212.5
