Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch

Prius pneumatic Company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch

  • 1
  • 2

Brand Name : PRIUS,XINYI or OEM

Model Number : XYC-31

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Material : Plastic

name : magnetic sensor switch

Working Pressure : 1-9.0Kgf/cm²

Pressure : 13.50Kgf/cm²

Temperature Range : 0-70℃

Speed Range : 50~800mm/s

Buffer Type : Gasket Buffer/Adjustable Buffer

Port Size : M5X0.8/G1/8"

Contact Now



XYC - 31 Series Magnetism Switch for Groove type cylinder with protection







Specification



Model XYC-31R   XYC-31N XYC-31P

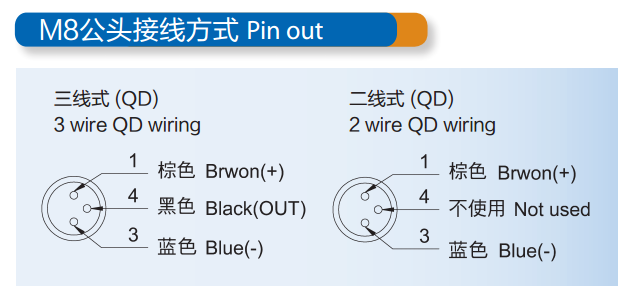

Connect Diagram
Characteristics

Wiring Method 2-Wire Type   3-Wire Type

Switching Logic SPST Nomally Open   Solid State Output, Normally Open

Sensor Type Reed Switch   NPN Current Sinking PNP Current Sourcing

Operating Voltage 5~240V DC/AC   5~30V DC

Max. Switching Current 100mA max.   200mA max.

Contact Rating 10W max.   6W max.

Current Consumption -     15mA @ 24V DC max.

Voltage Drop 3.5V max.   1.5V max.

Leakage Current -     0.01 mA max.

Indicator LED / Red LED   LED / Red LED LED / Green LED

Cable Ф3.0,2C,PUR   Ф3.0,3C,PUR

Max. Operating Frequency 200HZ   1000HZ

Temperature Range       -10~70℃

Shock 30G   50G

Vibration       9G

Enclosure Classification       IEC 529 IP67 (NEMA 6)

Protection Circuit -     With Protection





Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro SwitchMagnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro SwitchMagnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch





Overall Dimension



Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch



Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch



Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch
